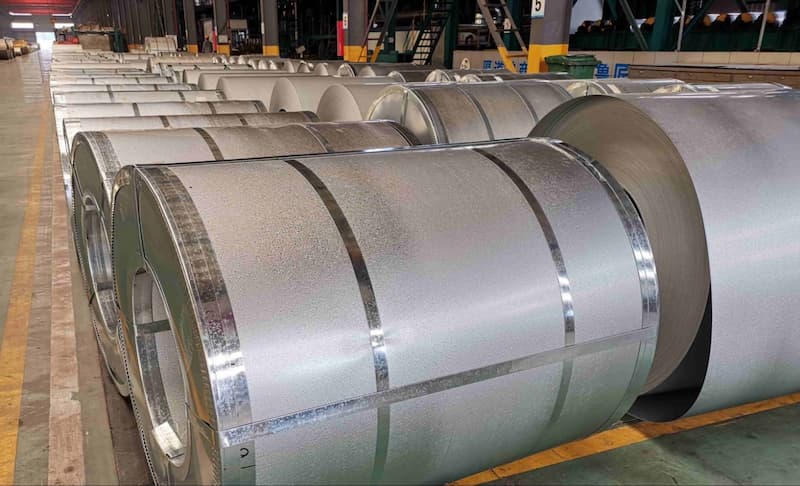

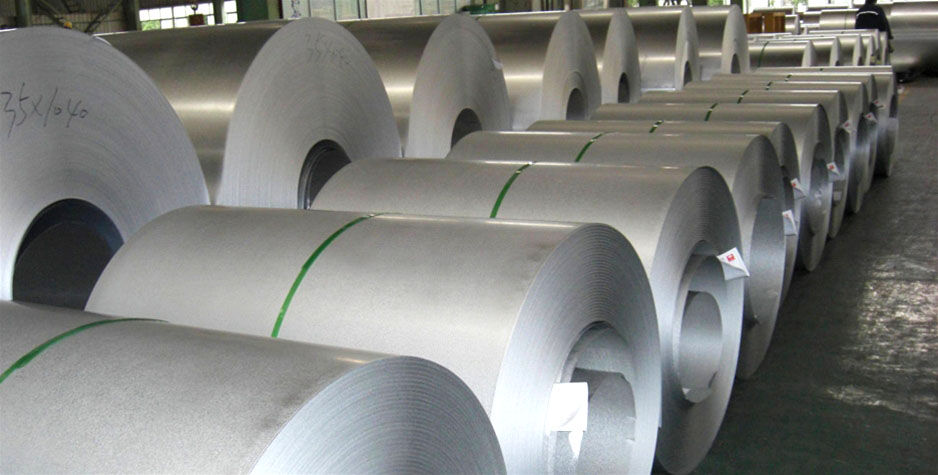

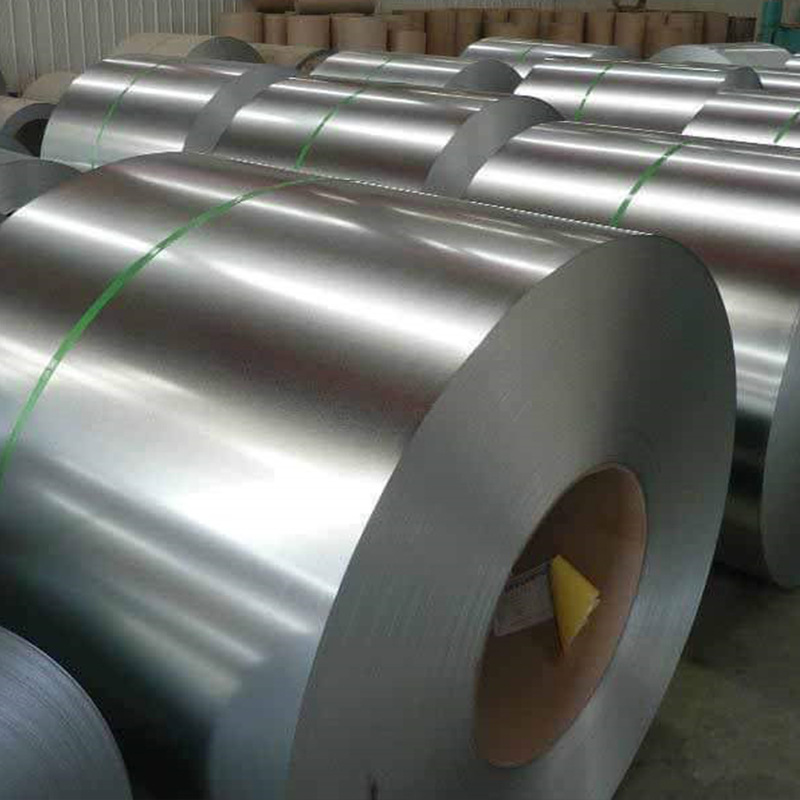

Al-Zn Coated Steel Coil

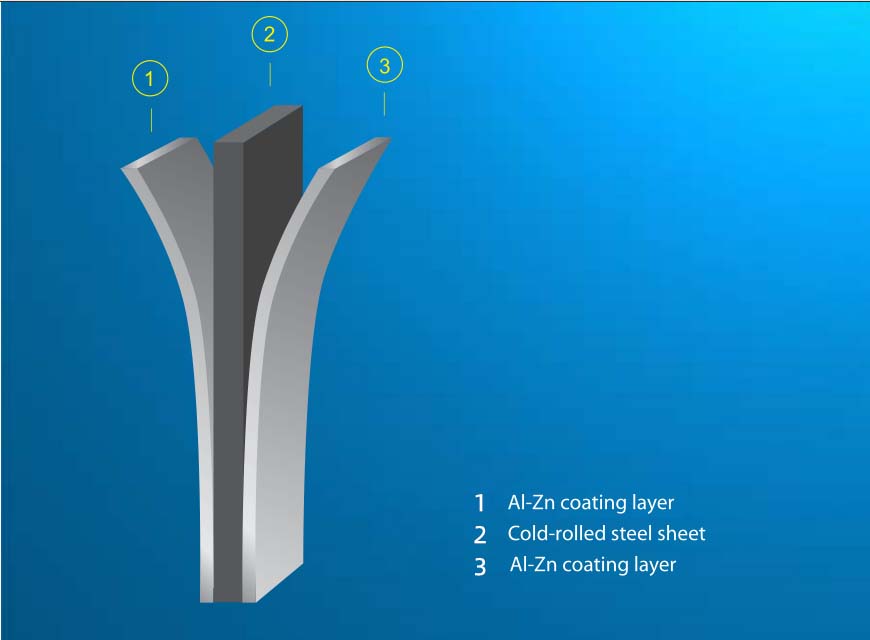

A pre-coated steel sheet produced by hot-dip coating Al-Zn alloy layers (optimized Al-Zn composition) on both sides of cold-rolled steel substrates with various strength and thickness specifications.
The surface exhibits a highly decorative, lustrous silver-gray finish with uniform patterns and an embossed texture.
This pre-coated steel sheet combines the optimal performance of aluminum-zinc alloy, offering enhanced protection and aesthetic appeal for industrial and architectural applications.
Specifications
| Substrate： | GL (galvalume iron) |
| Grades： | DX51D+AZ,S220GD +AZ,S250GD +AZ,S280GD +AZ,S320GD +AZ,S350GD +AZ,S550GD +AZ |
| Thickness Range: | 0.13mm to 2.0mm |
| Width Range: | 600mm to 1500mm |
| Diameter： | Φ508 mm/Φ610 mm |
| Coating Thickness： | 60-200 g/㎡ |
| Coil Weight: | 3-25 ton |
| Paint Option: | Polyester（PE),HDP, SMP, PVDF |
| Color Options: | RAL color (custom color available) |
| Paint Thickness: | Top paint:10-25μm , Back paint: 5-20 μm |
| Surface Finish: | Glossy, matte, or textured |
| Custom: | Available in custom sizes, coatings, and finishes. |
| Parameter | hot-dip galvanized zinc | hot-dip aluminum-zinc alloy |
| Composition | Zn | 55% Al,43.5% Zn |
| Coating Thickness | 80-200 g/m² | 150 g/m² |
| Heat Resistance | 425-540 °C | 590 - 700°C |
|
Time to Red Rust (Salt Spray Test) |
300 hours | 5,500 hours |
Al-Zn Coated Steel features
The coating composition consists of approximately 55% aluminum (Al), 1.6% silicon (Si), and zinc as the remaining component, combining Al's physical protection and high durability with Zn's electrochemical protective properties.
Application

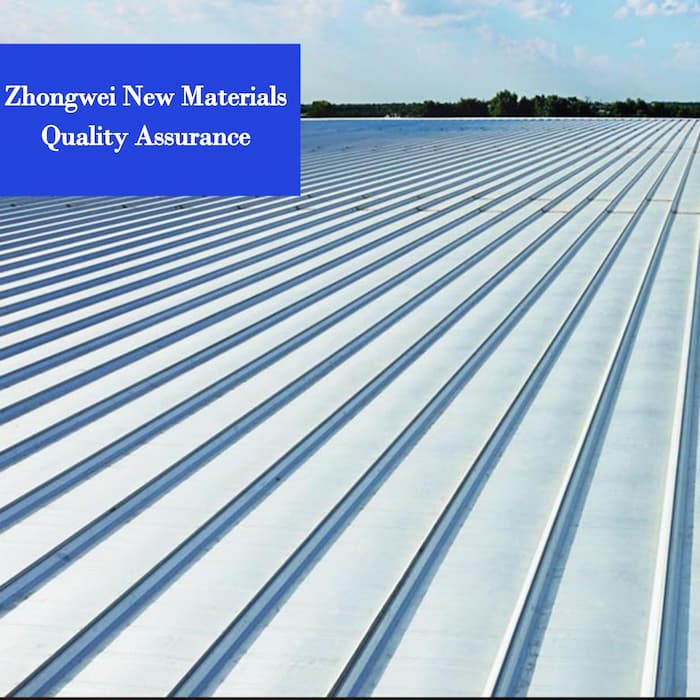

Architecture: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.
Automobiles: mufflers, exhaust pipes, wiper accessories, fuel tanks, truck boxes, etc.
Home appliances: refrigerator back panels, gas stoves, air conditioners, electronic microwave ovens, LCD frames, CRT explosion-proof belts, LED backlights, electrical cabinets, etc.
Agriculture: pig houses, chicken houses, granaries, greenhouse pipes, etc.
Others: thermal insulation covers, heat exchangers, dryers, water heaters, etc.
1. Heat reflectivity: The heat reflectivity of aluminum-zinc steel sheet is very high, twice that of galvanized steel sheet,it is used as a heat-insulating material.
2. Heat resistance: Aluminum-zinc alloy steel sheet has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius. It is very similar to the high-temperature oxidation resistance of aluminum-plated steel sheet and is often used in chimney pipes, ovens, lighting fixtures and fluorescent lampshades.
Corrosion resistance: The corrosion resistance of aluminum-zinc steel coils is mainly due to aluminum and its protective function. When zinc is worn, aluminum forms a dense layer of aluminum oxide to prevent corrosion-resistant substances from further corroding the interior.
3. Economic efficiency: Because the density of 55%AL-Zn is lower than that of Zn, the area of aluminum-zinc steel sheet is more than 3% larger than that of galvanized steel sheet under the same weight and the same thickness of the zinc-plated layer.
4.Easy to paint The galvanized steel sheet has excellent adhesion to paint and can be painted without pre-treatment and weathering. The galvanized layer of the galvanized steel sheet has excellent paint adhesion, so it can be directly coated on advertising boards and general boards without pre-treatment such as weathering.
5. The galvanized steel sheet has a gorgeous silver-white surface.
6. Alu-zinc coated steel sheets have similar processing and spraying properties to galvanized steel sheets.
